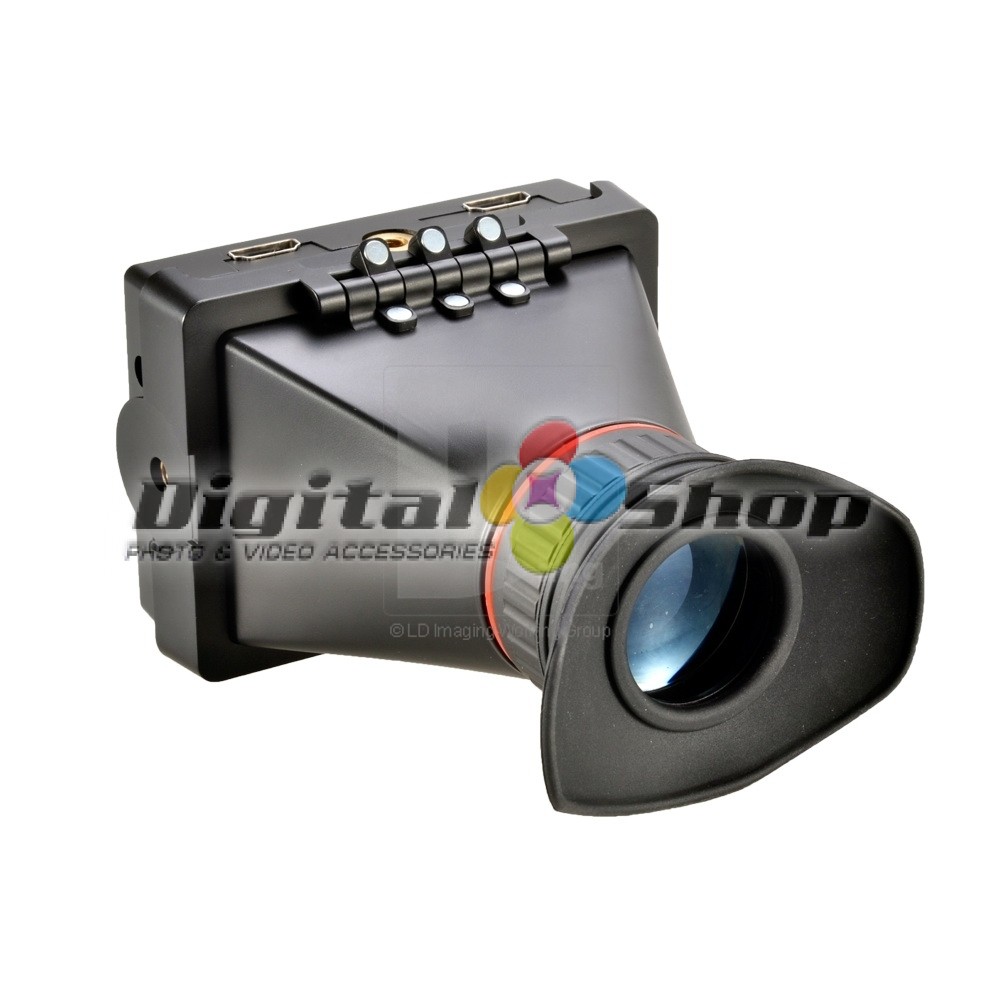

This EVF Electronic View Finder is transforming the form factor of DSLR cameras for video with our electronic viewfinder. The EVF is a 3.5” TFT-LCD Max. resolution up to1920*1440 . This electronic viewfinder is compatible with all cameras with an HDMI output including DSLR’s like the Canon 5d Mark II, Mark III, 7D, 60D, Nikon D800, D4, Panasonic GH2, Panasonic AG-AF100, Sony FS700, Sony FS100, Sony F3 etc…. This electronic viewfinder allows you to operate the DSLR camera or any cameras with an HDMI port, with the correct form factor for video with the camera “in-line” to your rod system (the most stable way) and your eye in the EVF offset. In addition, brightness, contrast, hue and saturation can be adjusted. Ideal for indoor and outdoor filming
Features:
- Adjustable sunshade eyepatch

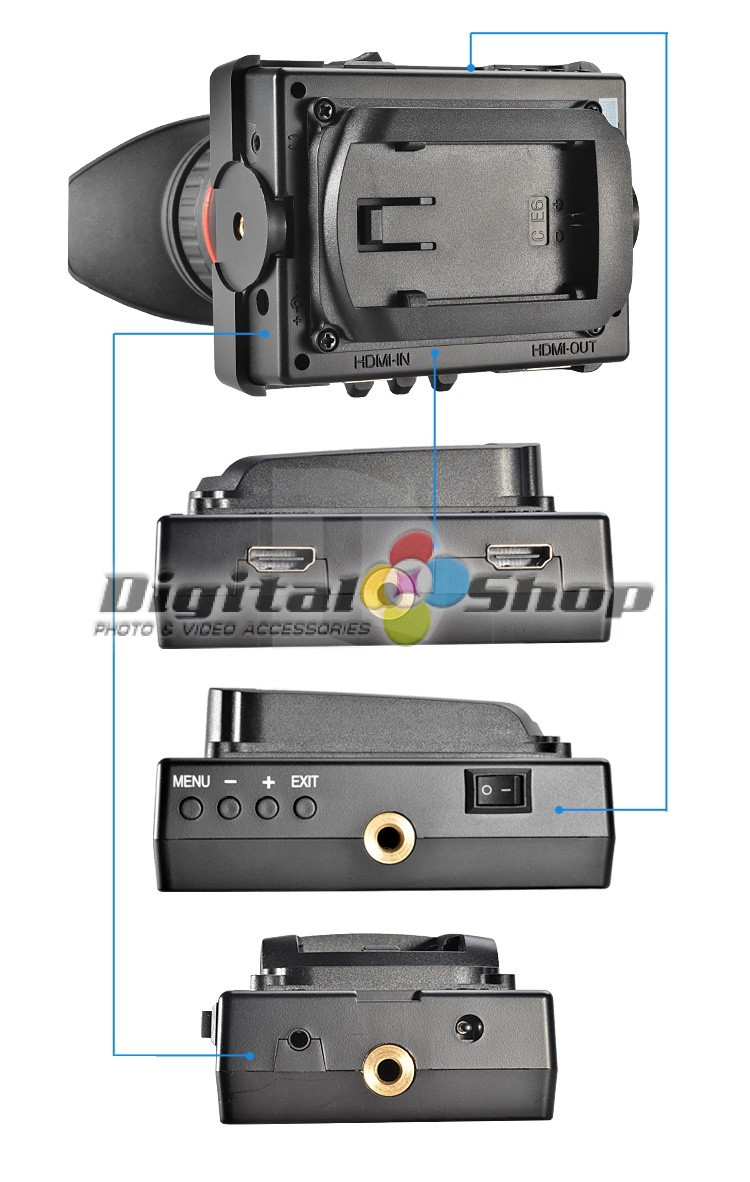

- HDMI Input & HDMI Output
- Earphone stereo output convenient scene pick-up effect monitoring
- Support 1920x1440 HD Video display

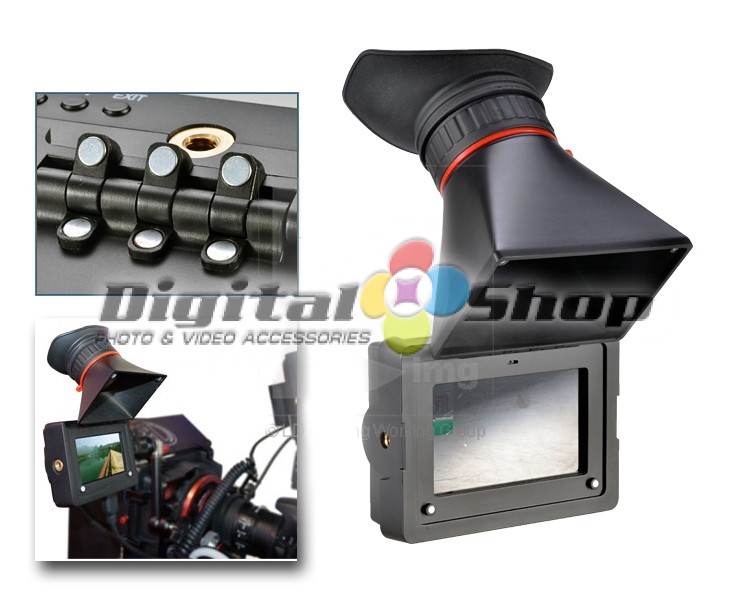

- Multiple position installation ways: convenient combine with tripod with 1/4" port, magic arm, installed in your best visual position, without considering the camera placement, more leisurely for video shoot.
- Shortcut canon 5D Mark II mode. Adopt 5D2 or 550D, use MODE to select HDMI menu first, after picture displayed on the camera, press the camera button, LCD screen flashed before release, LCD screen full screen display, from viewfinder we can see recording NO time difference, image is NO deformation, NO Black Screen, No Delay, Perfect without distortion.
- Focus Assist enhances edge sharpening making in focus objects stand out. This makes critical focus immediately easier to see.
- Shortcut button Red, Green, Blue and Monochrome display switch
- Screen Marker(80%, 85%, 90%, 93%, 96%)
- Cross Center Marker
- Image 16:9 or 4:3 display switch mode
- Brightness, Contrast ratio, Tint, Saturation and color temperature adjust
- Powered by the Sony F550, 750, 970 battery, or AC input (Battery and power adapter not included)
Panel size : 3.5inch
Panel type : COLOR TFT-LCD
Resolution : 800×480 Pixels
Horizontal Frequency Range : 30-60kHz
Field Frequency Range : 60Hz ~ 75Hz
Max Resolution : 1920*1440
Dot pitch: 31.5 x94.5 um
Display ratio: 16:9
Brightness : 315 cd/㎡
Contrast ratio : 800:1
Response time : 15 ms
Viewing angle : 80°/80° (L/R) 80°/80° (U/D)
Backlight : LED
Input signal : HDMI
Signal output : HDMI
Support signal format : 480i, 480p, 576i, 576p, 720/50p, 720/60P, 1080/50i, 1080/60i, 1080/50P, 1080/60P
Input power voltage range : DC 6~18V
Power consumption : ≤ 3 W
Standby current: ≤ 50 mA
Working temperature : -20°C~55°C
Storage temperature : -30°C ~ 65°C
Size : 100 x 78 x 48mm
Weight : 302g

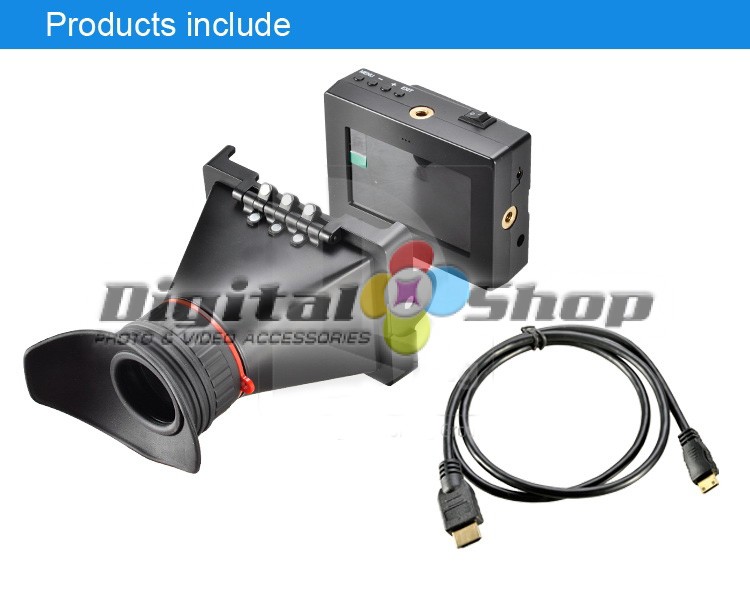

Contains :
1x 3.5" LCD Minitor
1x Viewfinder
1x HDMI Cable
