FEELWORLD 7" LCD Monitor, is a high-quality portable DSLR field monitor that combines compact size, light weight and affordability with a range of video source inputs and advanced features. Providing intuitive onscreen controls and a crisp 800 x 480 resolution this monitor will help you keep your DSLR shots sharp, perfectly framed, and in focus. Designed to be used as an external video display, this HD monitor unit allows you to step back from the camera to frame and capture the action in comfort without having to look through the camera's built-in viewfinder. It converts the image you would normally see on your tiny built-in camera screen to a much larger display that enables easier viewing and won't strain your eyes. An external display monitor is especially ideal in extreme high or low angle shots where it might be hard to access the viewfinder or when you are using a jib, crane or dolly to capture your footage.

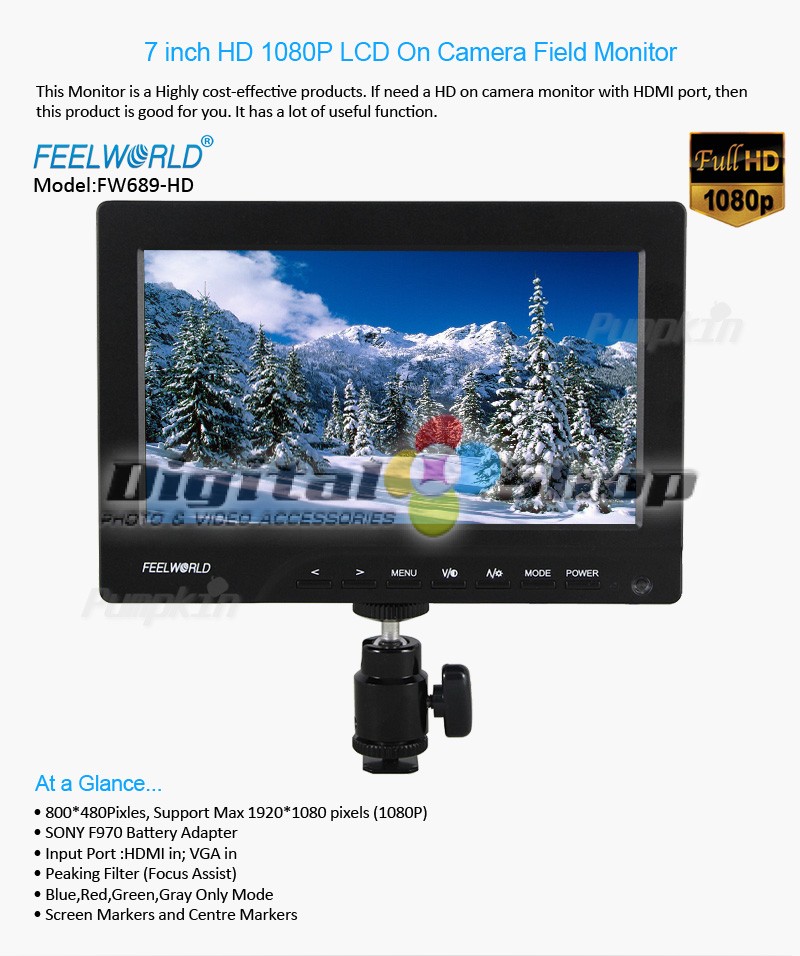

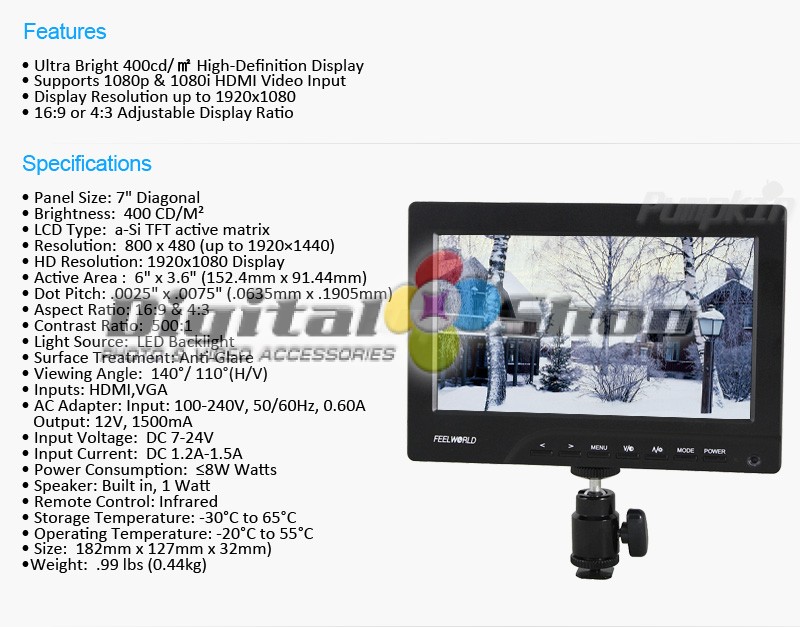

Desciption 7" Pro-photography LCD HD Monitor
Model: FW689HD
Brightness: 300cd/m²
Dot Resolution: 800*480 pixels (max to1920×1440)
Contrast Ratio: 500:1
Aspect Ratio: 16:9
Backlight: LED
Viewing Angle: 70°/70°(L/R) 50°/60°(U/D)
Input Voltage: DC 6V-24V
Power consumption ≤8 W
Supported input frequency H: 30~60kHz V:50~75Hz
HDMI supported formats 480i,480p,576i,576p,720p,
1080/ 50i/ 60i/ 50p/ 60p;
Video color system PAL-4.43; NTSC-3.58
Store Temperature: -30°C~70°C
Unit Size: 188.4L × 131W × 40H(mm)
Unit Weight: 450g
Customization Experience
no hdmi output
auto power on
button certain function
Advanced Features

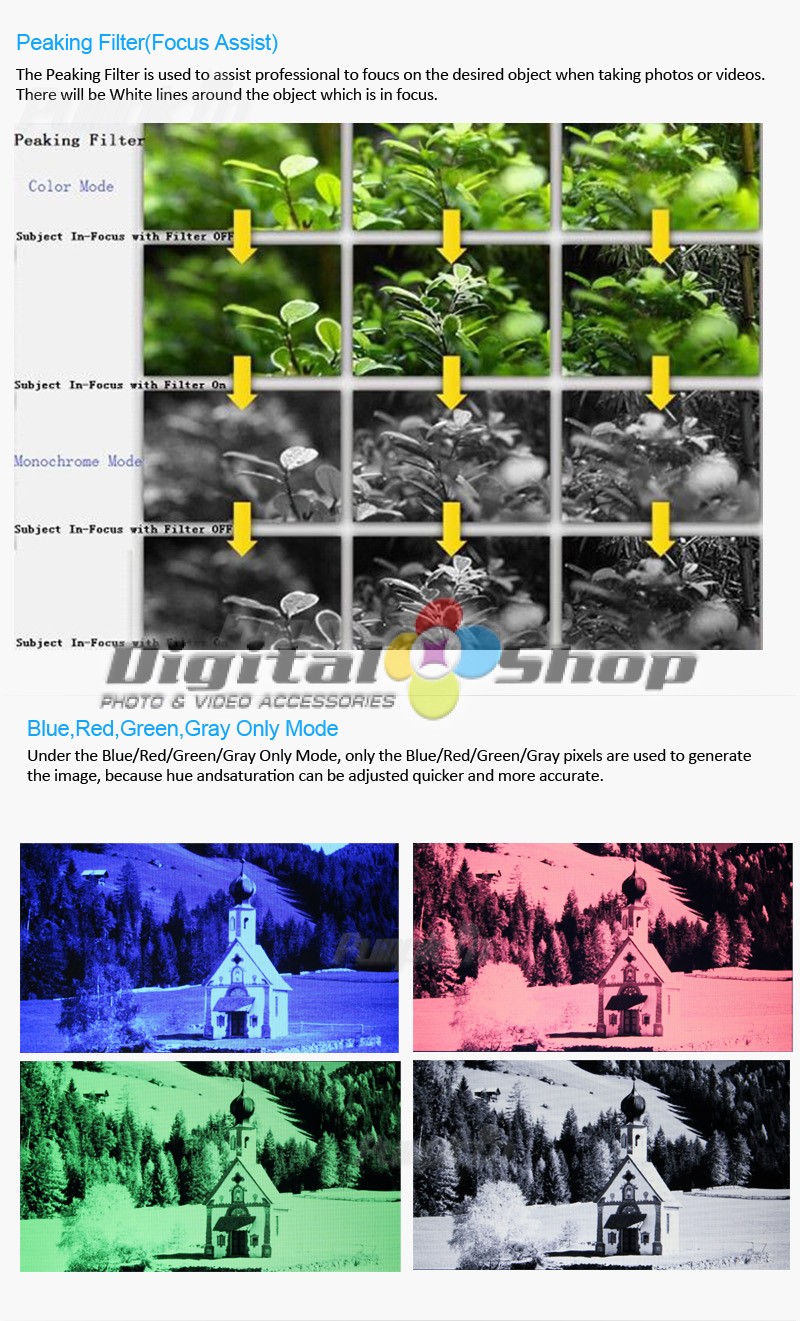

*Peaking Focus Assist(peaking filter)
*5D Ⅱ camera Mode
*Check Field: Mono,Red,Green,Blue,Off

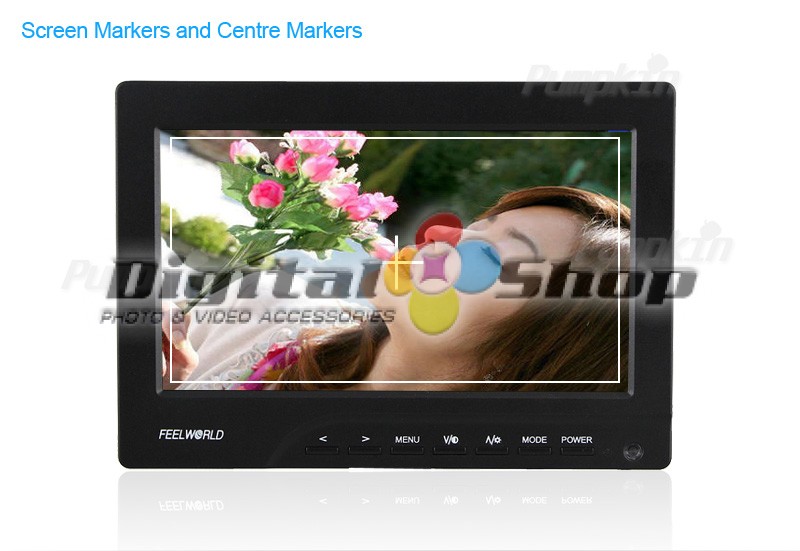

*marker background &scale&frame finder: Off,96%,93%,90%,85%
*4:3&16:9 image adjustable
*Power sources
DC6-24V input

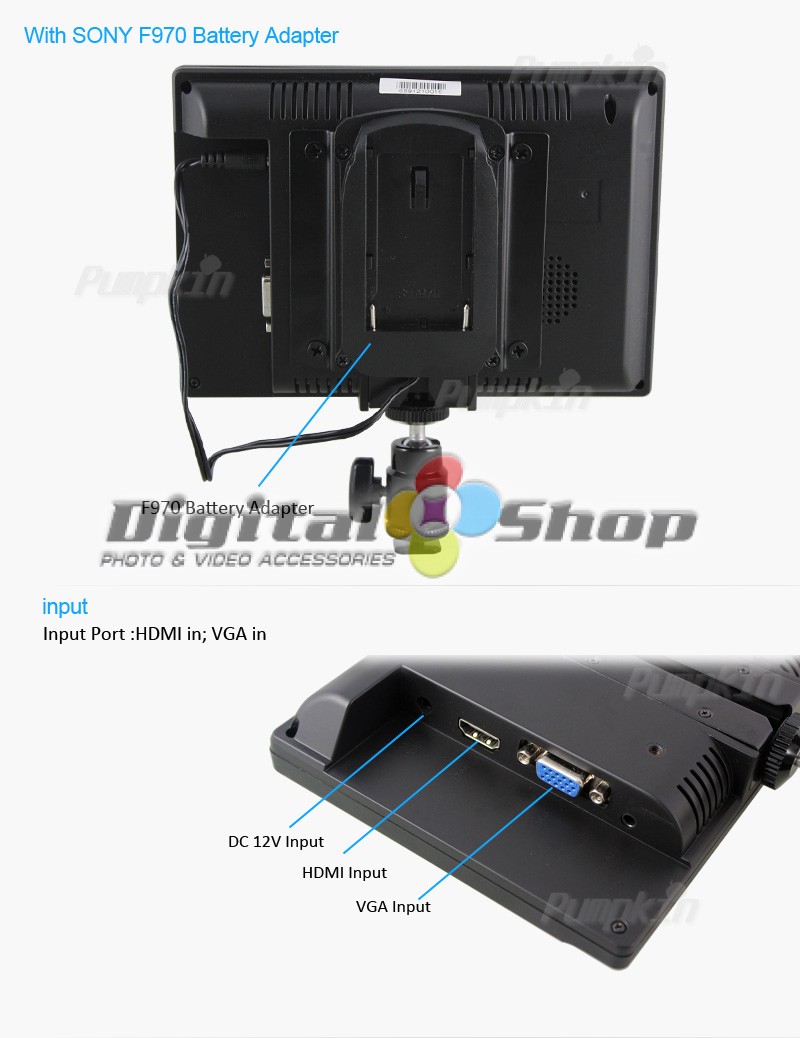

Battery plate: Sony F970,PA D28S,Canon E6 optional

1.7-Inch HDMI Camera-Top Monitor Kit
2.HDMI,VGA input
3.AV1,AV2,Audio
4.small-sized, easily operated and safety
