Peaking focus assist(peaking filter)
Canon 5D Mark II mode (CAMERA)
Image magnification/scaling, image flip function
Picture in picture(PIP)function
Line field blanking
Tally indicator
Front earphone hole
Monochrome display: color, black, red, green, blue, closed
Screen ratio:panorama, real mode, 4:3, full screen, scaling1, scaling 2
Scan mode: standard, under scan, over scan
Screen marker: off, 96%, 93%, 90%, 85%
Display pixel and the pixel point to point

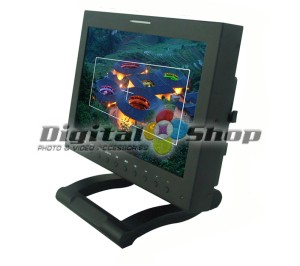

A. 12.1" Professional 3G SDI Broadcast Monitor with Metal Frame
B. Signals: HDMI, YPbPr, AV and 3G/HD/SD sdi
C. Resolution: 1280x800
D. Brightness: 200CD/m2
E. Ratio: 16: 9
Advanced Features
*Peaking Focus Assist(peaking filter)
*Image Multiplication&Freeze&Flip
*Picuture in Picture(PIP)
*H/V Delay
*front earphone jack
*Tally Red/Green Color
*Check Field Mono, Red, Green, Blue, Off
*Aspect Ratio DOT by DOT, Panorama, Zoom1, Zoom2, 4: 3, Full screen
*Scan Mode Standard, Overscan, Underscan
*screen Marker Off, 96%, 93%, 90%, 85%
*Power Ways DC XLR Power adapter
Sony V battery plate
Panasonic Anton battery plate
Power from DV device
Model: P121-9HSD
DOT Resolution: 1280x800 pixels
Brightness: 220 CD/m2
Contrast Ratio: 300: 1
Aspect Ratio: 16: 9
Backlight: LED
Inputs: SDI, HDMI, Component, Video, Audio
Outputs: SDI, Component, Video, Audio
Viewing Angle: 45° , 45° (R, L), 20° , 40(U, D)
Input Voltage: DC12V± 15%
Power Consumption: ≤ 23W
WorkingTemperature: -20-60
Storage Temperature: -30~70
Unit Size: 344.8*228.2*43(mm)
Unit Weight: 2.3KGS
| SDI Support Mode | ||
| NO. | Resolution | Catalogue |
| 1 | 1080P@60HZ/59.94HZ | 3G-SDI |
| 2 | 1080P@50HZ | 3G-SDI |
| 3 | 1080I@60HZ/59.94HZ | HD-SDI |
| 4 | 1080I@50HZ | HD-SDI |
| 5 | 1080P@30HZ/29.97HZ | HD-SDI |
| 6 | 1080P@25HZ | HD-SDI |
| 7 | 1080P@24HZ | HD-SDI |
| 8 | 720P@60HZ/59.94HZ | HD-SDI |
| 9 | 720P@50HZ | HD-SDI |
| 10 | 720P@30HZ/29.97HZ | HD-SDI |
| 11 | 720P@25HZ | HD-SDI |
| 12 | 720I@24HZ/23.97HZ | HD-SDI |
| 13 | 480I@60HZ/59.94HZ | SD-SDI |
| 14 | 576I@50HZ | SD-SDI |
| 15 | PAL | SD-SDI |
| 16 | NTSC | SD-SDI |
Panel size 12.1″ TFT LCD
Pixels 1280(H)×800(V)pixels
Distance 0.204(H)×0.0.204(V)mm
Brightness 200 cd/m²
Contrast ratio 500:1
Response time 16 ms
Display ratio 16:9 / 4:3 (adjustable)
Backlight LED
Input voltage DC7V-12V±10%
Input signal 3G-SDI, HD-SDI, SD-SDI, (Can choose)
HDMI, Component(Ypbpr), Composite Video, Audio
Output signal 3G-SDI, HD-SDI, SD-SDI, (Can choose)
Component(Ypbpr) Composite Video, Audio
Special function TALLY,Image magnification,Image pause
Power consumption ≤ 8.5 W
Working temperature -10°C~55°C
Storage temperature -20°C~65°C
Size(mm) 300 L × 150 W × 70 .H (mm) Folding
300 L × 275 W ×190 H (mm) Stretch
Weight 2520g 3.Accessories:
Sony V mount battery plate(standard)* 1pc
Power adapter* 1pc
BNC cable* 1pc
TALLY kit *1pc
BNC to RCA adapter* 3pcs
SDI cable(optional)* 2pcs
HDMI cable(HDMI to Mini HDMI)* 1pc
Operation manual *1pc
